Why Every Concrete Structure in Pakistan Needs Proper Joint Waterproofing

Ask any contractor in Pakistan about the most common source of leaks in buildings. The answer is almost always the same: construction joints.

These are the unavoidable lines where one concrete pour ends and another begins. In theory, they should be watertight. In practice, they are almost always the weakest link. Water finds these joints, seeps through, and over time, turns basements into swimming pools and roofs into dripping nightmares.

Traditional solutions like PVC waterstops have a fundamental flaw: they are passive. If concrete shrinks away from them, or if settlement creates a gap, water flows right past.

AQUAFIN®-CJ6 is different. It is an active, intelligent waterstop that doesn’t just sit there  it responds. When water threatens, it swells. It grows. It fills every gap and blocks every path.

For waterproofing in Pakistan, this is the technology that finally solves the joint leakage problem.

What Exactly Is AQUAFIN®-CJ6?

AQUAFIN®-CJ6 is a thermoplastic swellable waterstop bar supplied in rolls. Its composition is based on TPE (Thermoplastic Elastomer) a material that combines the flexibility of rubber with the durability of plastic.

But the magic lies in what it does when water touches it.

The bar is designed to be installed in construction joints before the next concrete pour. Once embedded, it waits. If water ever reaches the joint, the bar absorbs it and begins to swell — expanding up to 700% of its original volume.

This swelling creates immense pressure (~1.06 N/mm²) inside the joint, sealing it completely. And because the swelling is a chemical reaction with water, it works equally well in fresh water and salt water critical for coastal projects in Karachi.

How AQUAFIN®-CJ6 Works

Self-Injecting Effect

One of the most remarkable features of AQUAFIN-CJ6 is its self-injecting effect. As the bar swells, it doesn’t just expand in place — it actively penetrates into:

· Cracks in the concrete

· Cavities and voids

· Gaps around aggregates

This means even if the joint isn’t perfect, the bar will find its way into every opening and seal it.

Dimensional Stability at High Temperatures

Pakistan’s summers are brutal. On rooftops, temperatures can soar past 60°C. Many waterstops soften, deform, or lose effectiveness.

AQUAFIN-CJ6 is extremely dimensionally stable, even at high temperatures. It maintains its shape and performance regardless of the heat.

Tested to 4 Bar Water Pressure

The bar has been tested according to BBA (British Board of Agréement) standards and provides a watertight concrete sealing system up to 4 bar pressure.

For context, 4 bar equals a 40-meter water column. This is serious hydrostatic pressure — the kind found in deep basements, below-grade structures, and water-retaining facilities.

Where to Use AQUAFIN®-CJ6 in Pakistan

Basement Construction Joints

The most common application. Between basement wall pours, at the base slab to wall joint, and at construction stops. AQUAFIN-CJ6 ensures that even under high groundwater pressure, these joints remain dry.

For waterproofing in Karachi, where water tables can be high, this is essential.

Water Treatment Plants and Reservoirs

Structures that hold water must remain watertight forever. AQUAFIN-CJ6 in the construction joints ensures no leaks develop over time.

Bridge Decels and Abutments

Infrastructure projects across Pakistan — from Lahore’s underpasses to Islamabad’s flyovers — use construction joints that must resist water and de-icing salts. AQUAFIN-CJ6 delivers.

Swimming Pools

Pool joints are constantly under water pressure. AQUAFIN-CJ6 swells to seal, ensuring no leakage through construction joints.

Roof Parapets and Expansion Joints

For roof waterproofing, the joints between parapet walls and roof slabs are common leak points. AQUAFIN-CJ6 provides permanent protection.

Industrial Floors

Wherever concrete is poured in sections, joints are potential leak paths. AQUAFIN-CJ6 seals them permanently.

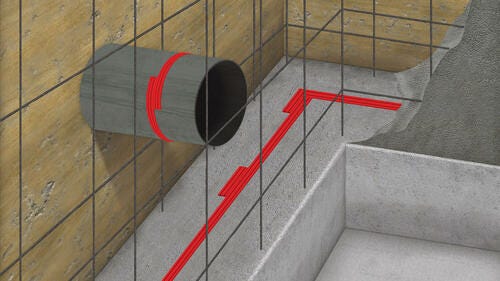

Step-by-Step: How to Install AQUAFIN®-CJ6

Step 1: Surface Preparation

The substrate must be:

1. Dry

2. Even

3. Clean

4. Free of adhesion-inhibiting substances (oil, grease, loose particles)

Step 2: Installation Methods

Method A — Adhesive Bonding:

· Apply mounting adhesive for swellable waterstops

· Press bar firmly into place

· Wait minimum 8 hours before concreting

Method B — Mechanical Fixing:

· Use steel nails, minimum 5 nails per meter

· Ensure bar is fully pressed against substrate

· No waiting period required (but still follow adhesive manufacturer’s guidance if used)

Step 3: Avoiding Defects

· Avoid looping and cavities — the bar must be in full contact with substrate

· Ensure no air pockets behind the bar

Step 4: Making Connections

For bar-to-bar connections:

Overlap Joint:

· Minimum overlap 5 cm

· Simply overlap the bars

Butt Joint:

· Cut ends square and butt together

· Secure with a separate piece of swelling bar

· Overlap on each side: minimum 3 cm

Step 5: Concreting Requirements

The TDS specifies: “A concrete covering of >8 cm should be carried out to the water-conducting side.”

This means:

· At least 8 cm of concrete must cover the bar on the side facing water

· Ensures proper embedment and prevents the bar from being disturbed during pouring

Special Considerations for Pakistani Projects

Heat and Storage

Store AQUAFIN-CJ6:

· Cool and dry

· Protected from sunlight

· Shelf life: 24 months in original packaging

Humidity and Pre-Swelling

In monsoon conditions, humidity alone can trigger swelling. If bar arrives on site already swollen, do not use it. Heavily pre-swollen joint sealing bars are unsuitable and must be removed.

Concrete Cover in Slabs

For roof applications, ensure the 8 cm cover requirement is met. On thin roof slabs, this may require design adjustments.

Salt Water Performance

For coastal projects, AQUAFIN-CJ6 is explicitly suitable for salt water. This makes it ideal for:

· Karachi’s coastal developments

· Desalination plants

· Port and harbor structures

Frequently Asked Questions

Q: Can AQUAFIN-CJ6 be used for roof waterproofing?

Yes — specifically for construction joints in roof slabs. If your roof is poured in sections, the joints between pours are potential leak points. Installing AQUAFIN-CJ6 in these joints provides permanent roof leakage solution. However, for the main roof surface area, other waterproofing products like AQUAFIN-IC or ASODUR-EV200 are more appropriate.

Q: How long does it take to swell?

Swelling begins within 2 hours of water contact. At 24 hours, it reaches ~460% of original volume. Maximum swelling (≥700%) occurs within 8 days.

Q: What pressure can it withstand?

Tested to 4 bar water pressure in accordance with BBA standards.

Q: How is it different from bentonite waterstops?

Bentonite can wash out under flowing water conditions. AQUAFIN-CJ6 is a TPE-based swellable material that remains in place and maintains its sealing pressure even under flowing water.

Q: What if I need to make a corner?

For corners, simply bend the bar. Its thermoplastic nature allows forming without cracking. Ensure proper overlap at corners.

Why Leading Waterproofing Companies in Pakistan Choose AQUAFIN®-CJ6

The best waterproofing companies in Pakistan select AQUAFIN-CJ6 because:

· It actually works — active swelling seals joints that passive systems miss

· Simple installation — reduces labor costs and errors

· BBA certified — independently verified performance

· Versatile — fresh water, salt water, all joint types

· Durable — dimensionally stable even in Pakistan’s heat

For waterproofing in Karachi, waterproofing in Lahore, and major infrastructure projects nationwide, AQUAFIN-CJ6 is the specification that ensures joints don’t leak.

Conclusion

Construction joints are the unavoidable weak points in concrete structures. For decades, they have been the source of leaks, repairs, and headaches for builders across Pakistan.

AQUAFIN®-CJ6 changes this. By transforming a passive waterstop into an active, intelligent seal, it ensures that joints remain watertight for the life of the structure.

· Need to waterproof a basement construction joint? AQUAFIN-CJ6.

· Need to seal the joint between a roof slab and parapet wall? AQUAFIN-CJ6.

· Need a waterproofing bar for a water treatment plant expansion joint? AQUAFIN-CJ6.

· Need a solution that works in salt water for a Karachi coastal project? AQUAFIN-CJ6.

For best waterstop tape for waterproofing, for roof waterproofing tape that actually seals joints, for concrete that stays watertight forever — AQUAFIN-CJ6 is the intelligent answer.
